Cyclus Bearing Press Tools

Complete Bearing Press Kit incl. case

• Art Nr: 7202901
• EAN Code: 8590831249669

Includes 7202901N + 7202901K

This tool set allows you to press ball bearings into their seating, e.g. in the frame or hub. The advantage of this tool is that the fine threaded spindle applies a gradual and even pressure on the bearing, seating it slowly, which prevents damage to the bearing and bearing housing.

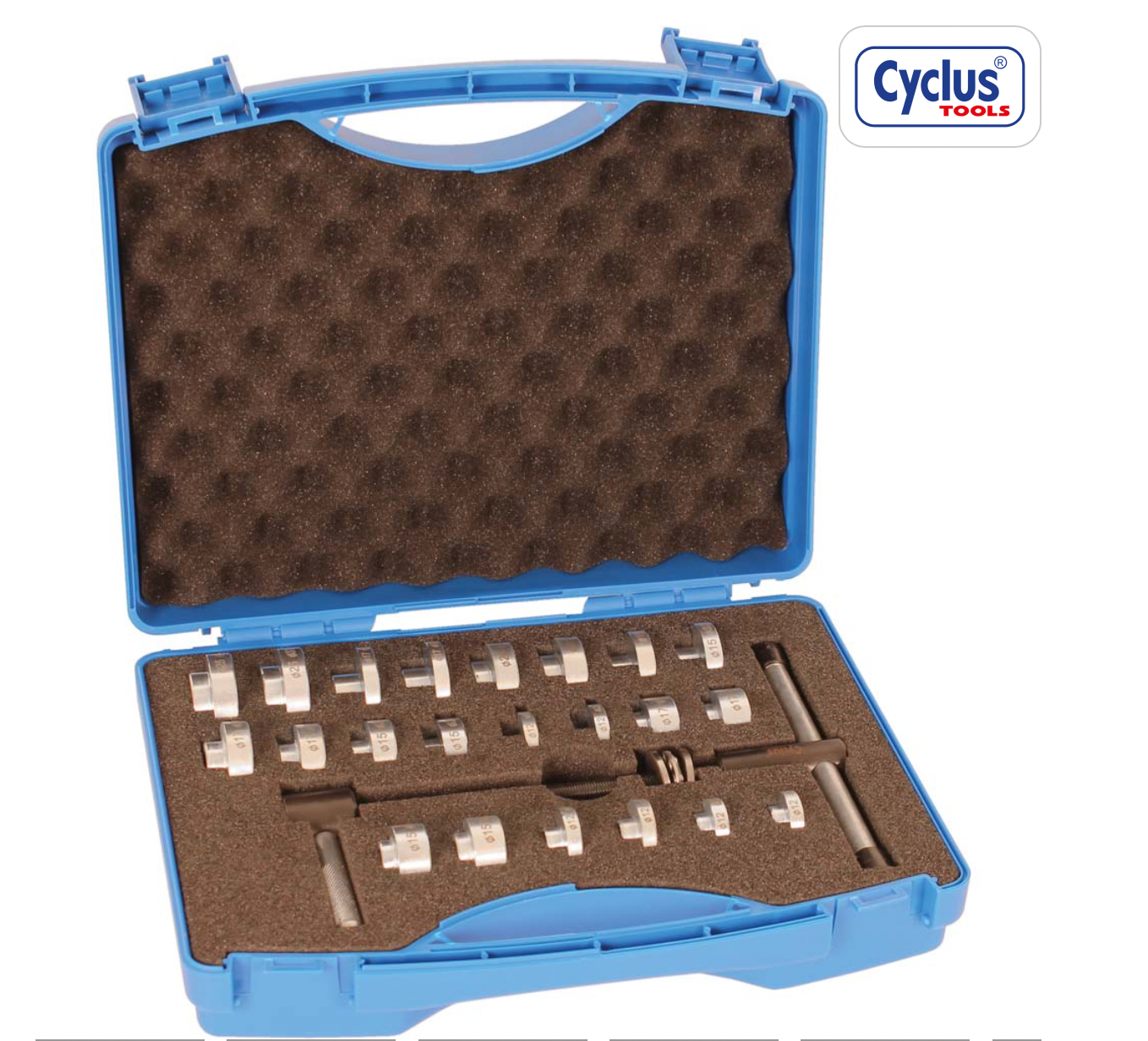

The set consists of:

• Bearing press tool (code: 7202953)
• Press rings for bearing: I.D./O.D. 12 mm/21 mm (code: 7202960)
• Press rings for bearing: I.D./O.D. 12 mm/24 mm (code: 7202961)
• Press rings for bearing I.D./O.D. 12 mm/28 mm (code: 7202962)
• Press rings for bearing I.D./O.D. 15 mm/24 mm (code: 7202963)
• Press rings for bearing I.D./O.D. 15 mm/28 mm (code: 7202964)
• Press rings for bearing I.D./O.D. 15 mm/32 mm (code: 7202965)
• Press rings for bearing I.D./O.D. 17 mm/26 mm (code: 7202966)
• Press rings for bearing I.D./O.D. 17 mm/30 mm (code: 7202967)
• Press rings for bearing I.D./O.D. 17 mm/35 mm (code: 7202968)
• Press rings for bearing I.D./O.D. 20 mm/32 mm (code: 7202969)
• Press rings for bearing I.D./O.D. 25 mm/37 mm (code: 7202970)
• Tool case (code: 7202998)
